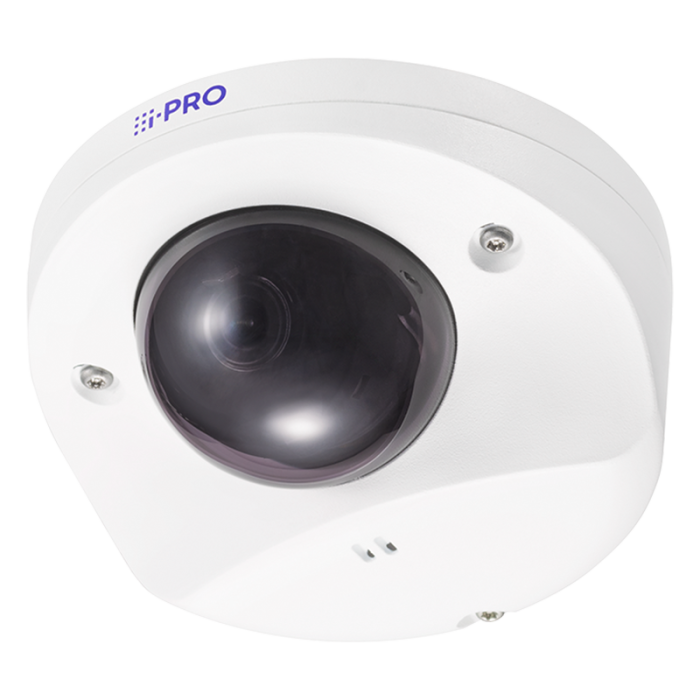

Name: Panasonic WV-U35401-F2LG All-in-one Compact dome camera with IR-LED
Brand: Panasonic
SKU: WV-U35401-F2LG
Availability: InStock

Description

Camera Specifications

Image Sensor	Approx. 1/2.7 type CMOS image sensor
Scanning Area	5.43 mm (H) × 3.95 mm (V) {7/32 inches (H) × 5/32 inches (V)}
Minimum Illumination	Color : 0.66 lx (30IRE, F2.1, 1/30s) Color : 0.94 lx (50IRE, F2.1, 1/30s) BW : 0.38 lx (50IRE, F2.1, 1/30s) BW : 0 lx (50IRE, F2.1, 1/30s with IR LED)
White Balance	ATW1 / ATW2 / AWC
Shutter Speed	–
Maximum Shutter	30 fps mode: Max.1/10000s to Max.16/30s 25 fps mode: Max.1/10000s to Max.16/25s
Intelligent Auto	On / Off
Super Dynamic	On / Off (Range : 0 to 31) *1
Dynamic Range	Max.102 dB (Super Dynamic : On, Level : 31)
Adaptive Black Stretch	–
Back light Compensation / High light Compensation	BLC (Back light compensation) / HLC (High light compensation) / Off *only when Super Dynamic / Intelligent Auto : Off
Fog Compensation	On / Off (Range : 0 to 8) *only when Intelligent auto / Auto contrast adjust : Off)
Maximum Gain (AGC)	The level can be set in the range of 0 to 11.
Color/BW (ICR)	Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR Illumination	High/ Middle/ Low/ Off Maximum irradiation distance : 10 m {Approx. 33 ft} (30IRE)* 7 m {Approx. 23 ft} (50IRE) * Converted value
Digital Noise Reduction	The level can be set in the range of 0 to 255.
Video Motion Detection (VMD)	On / Off, 4 areas available
Scene Change Detection (SCD)	On / Off, 1 area available
Audio Detection	–
AI Sound Classification	–
AI Analytics	–
Privacy Zone	On / Off, Up to 8 zones available
VIQS	On / Off, Up to 8 zones available
Image Stabilizer	–
Camera Title (OSD)	On / Off, Up to 20 characters (alphanumeric characters, marks)

Lens Specifications

Optical Zoom	1x
Extra Zoom	max 4.0 x (when resolution is 640×360)
Digital (electronic) Zoom	–
Focal Length	2.4mm {3/32inches}
Angular Field of View	[16:9 mode] Horizontal : 128°　 Vertical : 71° [4:3 mode] Horizontal : 123° Vertical : 92°
Maximum Aperture Ratio	1 : 2.1
Focus Adjestment	–
Focus Range	0.7 m {27-9/16 inches} ～ ∞
Aperture Range	F2.1

DORI Specifications

Detect (25ppm / 8ppf)	26.2m {86.0ft}
Observe (62.5ppm / 19ppf)	10.5m {34.4ft}
Recognize (125ppm / 38ppf)	5.2m {17.2ft}
Identify (250ppm / 76ppf)	2.6m {8.6ft}
