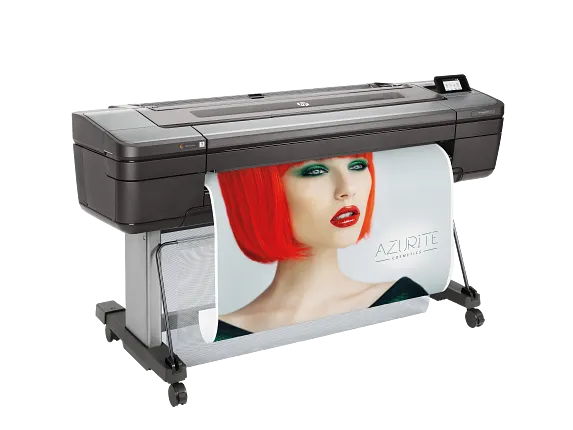

Name: HP DesignJet Z9+dr Large Format Dual-Roll PostScript Printer - 44", with Vertical Trimmer (X9D24A)
Brand: HP
SKU: X9D24A
Availability: InStock

Description

Technical details

HP DesignJet Z9+ PostScript Printer series

Functions

Print speed, maximum

Fast: 769 ft²/hr on plain media; Normal: 185 ft²/hr on coated media; Best: 48 ft²/hr on glossy media[1]

Resolution (color)

Up to 2400 x 1200 optimized dpi

Print Technology

HP Thermal Inkjet

Number of print cartridges

9 (cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray), optional gloss enhancer

Product disclaimer

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges.

Compatible ink types

Pigment-based

Print languages

Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL

Mobile Printing Capability

Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android.

Connectivity, standard

Gigabit Ethernet (1000Base-T) (802.3, 802.3u, 802.3ab); Hi-Speed USB 2.0 certified interface for direct printing from USB flash drive

Network ready

Standard

Memory, standard

128 GB (virtual)[9]

Hard disk

500 GB self-encrypting

Non-printable area (cut-sheet)

0.2 x 0.67 x 0.2 x 0.2 in

Guaranteed minimum line width

0.0031 in (ISO/IEC 13660:2001(E))[6]

Line accuracy

±0.1%[5]

Color stability

< 1 dE2000 in less than 5 minutes[8]

Print repeatability

Average < 0.5 dE2000, 95% of colors < 1.4 dE2000[8]

Maximum optical density (black)

4 L* min/2.5 D[8]

Finished output handling

Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)

Media sizes supported

A4, A3, A2, A1, A0

Media sizes, custom

8.3 x 11 to 44 x 66 in

Media types

Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit

Media sizes, standard

8.3 to 44-in wide sheets; 11 to 44-in rolls

Roll external diameter

5.3 in

Media thickness

Up to 31.5 mil

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max

Power consumption

<100 W (printing); <32 W (ready); <6.5 W (sleep); 0.1 W (off)

Operating temperature range

41 to 104ºF

Warranty

1 year limited hardware warranty

Software included

HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional)

Dimensions (W X D X H)

71 x 27.4 x 39.3 in

Weight

216 lb

Package weight

302 lb

What’s in the box

HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord

Sustainability Impact

30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; ENERGY STAR® certified; EPEAT® registered

Recommended Media

HP Universal Instant-dry Satin Photo Paper (FSC® certified)[11] (Recyclable)[12]; HP Premium Instant‑dry Satin Photo Paper (REACH compliant)[13](FSC® certified)[11](Recyclable)[12]; HP Artist Matte Canvas; HP Heavyweight Coated Paper (FSC® certified)[11] (Recyclable)[12]; HP Coated Paper (REACH compliant)[13](FSC® certified)[11](Recyclable)[12];HP Everyday Matte Polypropylene (Recyclable)[9]; HP Premium Matte Photo Paper (FSC® certified)[11] (Recyclable)[12]

Dynamic security

Dynamic security enabled printer

Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
